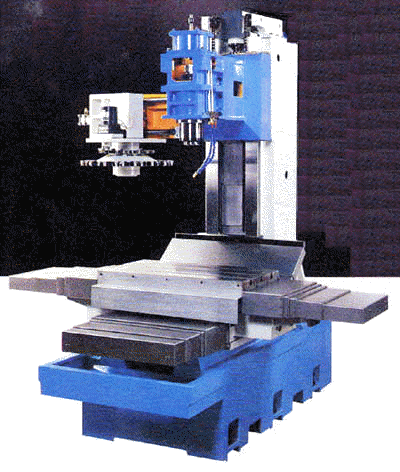

Vertical Machine Center RIGID CONSTRUCTION
Certified MEEHANITE castings are adopted on main components, offering close grain composition, high tensile strength, as well as long-term wear resistance. All mating surfaces of guide ways are precision scraped and coated with TURCITE-B and antifriction lining material.	All 3axes square slideways are flame hardened and precision ground. Z-axis counterweight ensures smooth movement during rapid feed. High precision ball screws on all three axes with direct driving from axis servo motors to eliminate backlash.

C-Series Specifications unit: mm
ITEM	C 610	C 810
TRAVEL
Table travel X Axis	610	810
Table travel Y Axis	500	500
Head travel Z Axis	500	500
Spindle nose to table	150~650 mm	150~650 mm
Spindle center to column front	540	540
Coium front to table center	280~780	280~780
AXIS FEED
Rapid feedrate X,Y Axis	12000 mm/min	12000 mm/min
Rapid feedrate Z Axis	12000 mm/min	12000 mm/min
Cutting feed	1~5000 mm/min	1~5000 mm/min
TABLE
Table size	800x450	1000x450
Max. load permissible	400 kgs	400 kgs
T-slot No./Pitch	3/125	3/125
T-slot width	18	18
HEADSTOCK
Spindle speed	STD: 60~6000 rpm ; OPT: 80~8000 rpm
Spindle motor	10 HP	10 HP
Spindle diameter	60	60
Spindle taper	STD: BT-40 ; OPT: CAT-40, DIN 69871
Coolant pump	STD: 1/4 HP ; OPT: 1/2 HP
