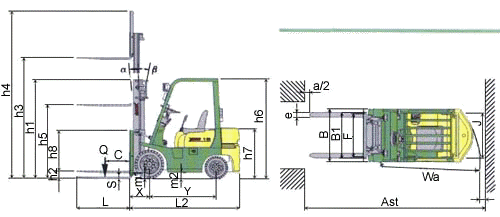

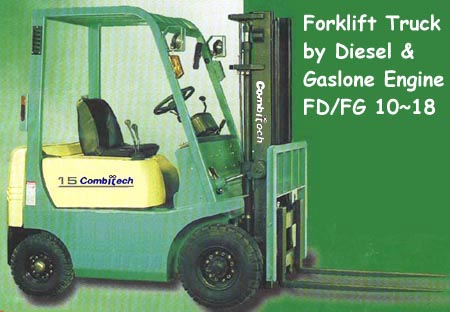

FD/FG 1~1.8Tons_Mast Dimensions

¡@

Modle	FD/FG 10		FD/FG 15		FD/FG 18
unit	mm	inch	mm	inch	mm	inch
B	1070	42 1/8	1070	42 1/8	1070	42 1/8
B1	924	36 3/8	924	36 3/8	924	36 3/8
a	200	7 7/8	200	7 7/8	200	7 7/8
Ast	3405/3605	134/142	3445/3645	136/143 1/2	3485/3685	137/145
Wa	2000	78 20/27	2040	80 6/19	2080	81 8/9
F	885	44 16/19	885	44 16/19	885	44 16/19
J	900	35 10/23	900	35 10/23	900	35 10/23
h4	3936	155	3936	155	3936	155
h3	3000	118 1/9	3000	118 1/9	3000	118 1/9
h1	2000	78 20/27	2000	78 20/27	2000	78 20/27
h8	936	36 17/20	936	36 17/20	936	36 17/20
h2	150	5 9/10	150	5 9/10	150	5 9/10
Q	1000 kgs	2205 lbs	1500 kgs	3307 lbs	1800 kgs	3968 lbs
C	500	19 13/19	500	19 13/19	500	19 13/19
L	1070,1220,1370,1520 mm (42 1/8, 48, 53 15/16, 59 16/19 inch)
L2	2190	86 2/9	2271	89 9/22	2323	91 5/11
X	405	16	405	16	405	16
Y	1350	53 3/20	1350	53 3/20	1350	53 3/20
m1	100	3 15/16	100	3 15/16	100	3 15/16
m2	185	7 2/7	185	7 2/7	185	7 2/7
h7	1045	41 1/7	1045	41 1/7	1045	41 1/7
h6	2050	80 7/10	2050	80 7/10	2050	80 7/10

Fuel tank capacity                        48 litre

Hydraulic oil tank capacity            37 litre

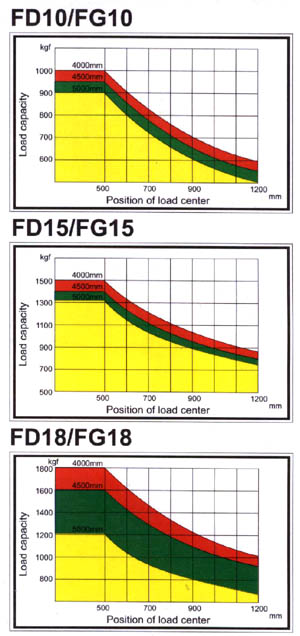

Mast Type	Mark	h4	h3	h1	h2/h5	£\	£]
	Model
		1~1.8 Tons	1~1.8 Tons	1~1.8 Tons	1~1.8 Tons
	Litiling height
DUPLEX STAGE	3.0 M	3936	3000	2000	150	6¢X	12¢X
	3.3 M	4236	3300	2160	100	6¢X	12¢X
	4.0 M	4936	4000	2500	150	6¢X	6¢X
DUAL STAGE	3.0 M	3936	3000	2000	1500	6 ¢X	12 ¢X
	3.3 M	4236	3300	2160	1650	6 ¢X	12 ¢X
TRIPLEX STAGE	4.7 M	5636	4700	2160	1580	6 ¢X	6 ¢X

¡@
