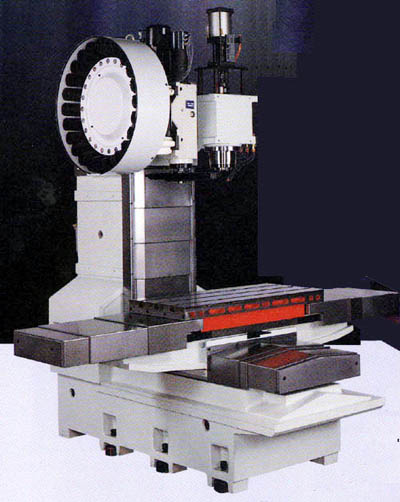

Vertical Machine Center RIGID CONSTRUCTION
  • Certified MEEHANITE castings are adopted on main components, offering close grain composition, high tensile strength, as well as long-term wear resistance.
  • All mating surfaces of guide ways are precision scraped and coated with TURCITE-B and antifriction lining material.
  • All 3axes square slideways are flame hardened and precision ground.
  • Z-axis counterweight ensures smooth movement during rapid feed.
  • High precision ball screws on all three axes with direct driving from axis servo motors to eliminate backlash.

H-Series Specifications                                    unit: mm

 ITEM H 650 H 850 H 1010 H 650L/L3 H 850L/L3
 TRAVEL
 Table travel X Axis 650 850 1010 650 850
 Table travel Y Axis 500 500 500 500 500
 Head travel Z Axis 520 520 520 520 520
 Spindle nose to table 120~650 mm
 Spindle center to column front 540 540 540 540 540
 Coium front to table center 290~790
 AXIS FEED
 Rapid feedrate X,Y Axis 15000 mm/min 24000 mm/min
 Rapid feedrate Z Axis 15000 mm/min 15000(24000) mm/min
 Cutting feed 1~5000 mm/min
 TABLE
 Table size 800x450 1000x450 1200x450 800x450 1000x450
 Max. load permissible 400 kgs 450 kgs 450 kgs 400 kgs 450 kgs
 T-slot No./Pitch 3/125 3/125 5/75 3/125 3/125
 T-slot width 18 18 18 18 18
 HEADSTOCK
 Spindle speed 60~6000 rpm
 Spindle motor 10 HP 10 HP 10 HP 10 HP 10 HP
 Spindle diameter 65 65 65 65 65
 Spindle taper STD: BT-40 ; OPT: CAT-40, DIN 69871
 Coolant pump STD: 1/4 HP ; OPT: 1/2 HP

¡@
