HIGH SPEED . HIGH ACCURACY TOOLROOM LATHE
¡@
MODLE CTL-618EM

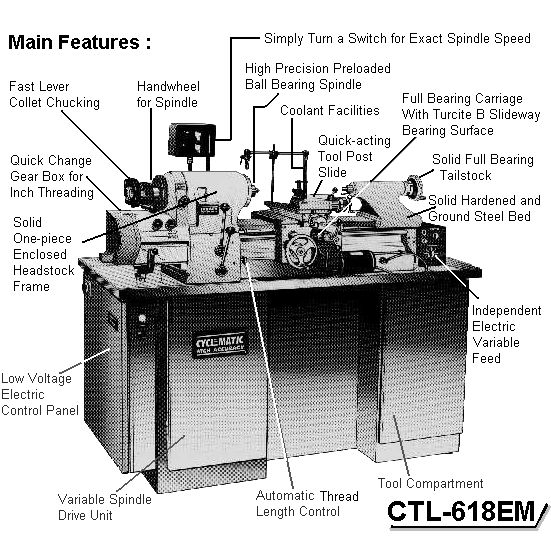

  • Dual range English / metric quick change gear box.
  • Dual reading English / metric dials on all axis handles.
  • The spindle is mounted in high precision preloaded ball bearings eliminating radial and end play.
  • Infinitely variable spindle speeds from 135-3025 rpm.
  • Fast lever collet chucking with a single movement.
  • Independent infinitely variable feeds produce accurate cuts with efficient chip removal, and smooth surface finish.
  • Quick change gear box for easy precision threading.
  • Automatic thread length control with fine adjustable stops provides for accurate threading without thread relief.
  • Full bearing carriage with Turcite B Slideway bearing material between carriage and bed.
  • Quick-action tool post slide for threading is instantly cleared from the work for a carriage return.
  • The specially designed bed ways are made of hardened and ground steel, that resist wear. The angular guide ways allow chips to fall in the chip tray.
  • The tailstock has full bearing contact with the bedways. The solid hard chrome spindle provides strength for maximum capacity loads.
  • Hardened and ground tool steel inserts for cross slideways.

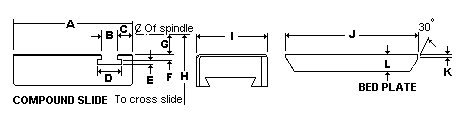

¡@ inch mm ¡@ ¡@ inch mm
A 6.023 153 G Max./Min. 1.11"/1.09" 28.2/27.7 mm
B Max./Min. 0.755"/0.75" 19.18/19.05 mm H 3 1/4 82.55
C 0.75 19.05 I 3 5/8 92
D 1 5/32 29.4 J 6 13/16 173
E 0.228 5.8 K 0.393 3.6
F 7/32 5.5 L 0.878 22.3

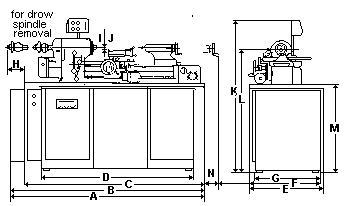

  • A : 2419.35 mm (95 1/4")
  • B : 2298.7 mm (90 1/2") with switch door open
  • C : 1765 mm (69 1/2")
  • D : 1487 mm (58 17/32")
  • E : 715 mm (28 5/12")
  • F : 673 mm (26 1/2")
  • G : 636 mm (25")
  • H : 279.4 mm (11")
  • I : 28.2 mm (1 1/9")
  • J : 27.7 mm (1 1/11")
  • K : 1487 mm (58 17/32")
  • M : 866 mm (34 1/11")
  • N : 120.65 mm (44 3/4")  for tail stock removal
SPECIFICATION inch/lb mm/kg
Spindle Capacity With Jaw Chuck 5" 127 mm
With ExpandingCollets 3" 76 mm
With Round 5C Collets 1 1/16" 27 mm
With Hexagon 5C collets 7/8" 22 mm
With Square 5C Collets 3/4" 19 mm
With Step Chucks 1 1/16"~6" 27~152.4mm
Spindle Nose Diameter 2.189" 55.6 mm
Spindle Nose 4 deg. Taper
Spindle Speed (varible) 135-3025 rpm
Hole Through Spindle 1 1/4" 31.75 mm
Distance Between Center 18" 457 mm
Swing Over Bed 11" 280 mm
Swing Over Carriage 9" 228.6 mm
Swing Over Cross Slide 6" 152.4 mm
Carriage Power Feed Range 5/16"~7"min 8~178 mm
Cross Slide Power Feed Range 3/16"~4"min 5~102 mm
Compound Slide Travel 3" 76 mm
Tailstock Spindle Taper M.T. No. 2
Tailstock Spindle Travel 3 3/4" 95 mm
Tailstock Spindle Diameter 1.358" 34.5 mm
Range of Threads in Gear Box 10~108 per inch
Number of Thread Changes 36(inch) 36(Metric)
Threads Included 11/11.5/12/13/14/15/16/17.5/18/20/22/23/24/26/27/28/30/32/35/
36/40/44/46/48/50/52/54/56/60/64/70/72/80/100/108
Metric Threads Cut .275/.2875/.30/.325/.35/.375/.40/.4375/.45/.50/.55/.575/.60/.625/.70/.75/.80
/.857/.90/1/1.1/1.15/1.2/1.25/1.3/1.35/1.4/1.5/1.6/1.75/1.8/2/2.5/2.7
Net Weight (approx.) 1830 lbs 830 kgs
Gross weight (approx.) 2220 lbs 1010 kgs
Dimensions (approx.)
(packed for shipment)		 78"x44"x78" 1980x1115x1980 mm

¡@
