CYCLEMATIC MACHINERY CO., LTD.

HIGH SPEED HIGH ACCURACY SECOND OPERATION MACHINES

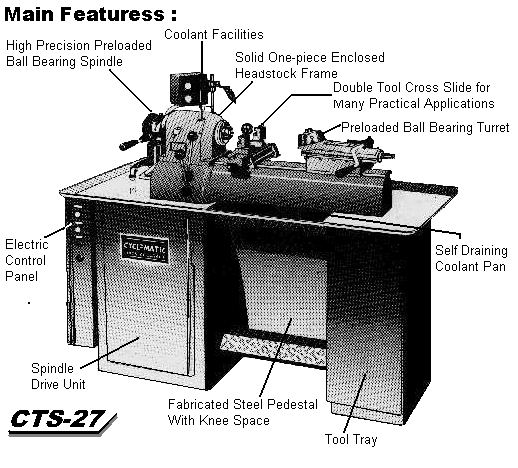

MODLE CTS-27 The spindle is mounted  in high precision preloaded ball bearings eliminating radial and end play. Fully enclosed preloaded ball bearing headstock with splash shield for spindle. Variable spindle speeds from 230-3500 rpm. Fast lever collet chucking with a single movement. Specially designed bed ways are made of hardened and ground steel that resist wear. The angular guide ways allow chips to fall in the oil pan. The double tools cross slide is held securely to the bed by a mating dovetail section and may be locked in any position on the bed. The preloaded ball bearing turret head eliminates all play between the turret head and the turret slide. The sliding ball bearing collet tray provides space for one set of collets and is within easy reach of operator.

MODEL CTS-27 DIMENSIONS: A : 2324 mm (91 1/2") B : 1702 mm (67") C : 1438 mm (56 5/8") D : 1441 mm (56 3/4") E : 1162 mm (45 3/4") F : 902 mm (35 1/2") G : 527 mm (20 3/4") H : 736 mm (29")

SPECIFICATION		inch/lb	mm/kg
Spindle Capacity	With Jaw Chuck	5"	127 mm
	With Expanding Collets	3"	76 mm
	With Round 5C Collets	11/16"~6"	27 mm
	With Hexagon 5C collets	7/8"	22 mm
	With Square 5C Collets	0.748"	19 mm
	With Step Chucks	1 1/16"~6"	27~152.4 mm
Variable spindle speeds		230~3500 rpm
Length of bed		36"	915 mm
Swing over bed		9"	229 mm
Travel of double tool cross slide		3 3/4"	95 mm
Travel of turret slide		4"	101.6 mm
Diameter of turret holes		5/8"	15:87 mm
Coolant tank capacity		3 gals.
Net weight (approx.)		1000 lbs	455 kgs
Gross weight (approx.)		1364 lbs	620 kgs
Dimensions (approx.) (packed for shipment)		74" x 35" x 68"	1880x890x1730mm
