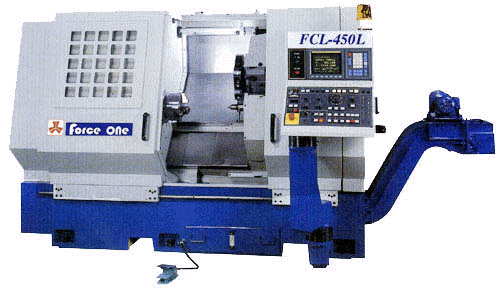

2-Axis ~ 3-Axis CNC LATHE FCL-450L
¡@
Standard Accessories
  • High pressure cooling system
  • 100 liter capacity cooling tank
  • Hydraulic turret 12-position, Type: 240A
  • Auto lubrication system
  • Tool & tool box
  • Work lamp, AC 24V 70W
  • M30 program stop light
  • Hydraulic Unit
  • Heat exchanger unit of electric box coolingr
  • Chip conveyor and bucket
  • Hydraulic chuck A2-6 8"
  • Hydraulic tailstock
  • Fanuc OTC controll & 9" CRT with standard-keyboard
    •
Optional Accessories:

         a. Duplomatic BS-TR-160 radil,
             VDI 30, 12-position power turret
             with FANUC alpha spindle motor.
             (Excluding ratating tool holder
             and tools)
         b. High resolution magnetic puls
             coder incorporated into main AC
             Spindle motor precision contour
              /index control.
FCL-450L Specification
MODEL FCL-450L
mm inch
Capacity  No. of control axis STD : 2 Axis ; OPT : 3 Axis (C Axis)
 Swing over bed Ø 450 Ø 17 5/7
 Max turning dia Ø 220 Ø 8 2/3
 Work length 720 28 9/26
Headsyock & Nain spindle  Spindle nose, internal taper
 (STD;OPT)		 ASA A2-6 MT No.6;
ASA A2-8 96 Ø 96 mm Taper 1/20
 Spindle bore (STD;OPT) Ø 61 ; 90 Ø 2 2/5 ; 3 6/11
 Bar capacity (STD;OPT) Ø L:51 ; 75 Ø 2 ; 2 20/21
 Hydraulic power chuck Ø 210 Ø 8 7/26
 Range of spindle
 speed		 X / Z Axis  50~4500 rpm
C Axis  40~3750 rpm
 No. of spindle speed infinitely variable
Cross slide
(X-axis)
&
Carriage
(Z-axis)
&
Sub spindle		  Longitdinal travel Z Axis  825 32 12/25
 Cross slide travel X Axis  170 6 9/13
 AC servo motor X Axis  1.0 kW 1.4 HP
Z Axis  1.0 kW 1.4 HP
 Dia of ball screw X Axis  Ø 32 P10 Ø 1 6/23 P10
Z Axis  Ø 36 P10 Ø 1 5/12 P10
 Rapid traverse
 speed		 X Axis  16 m/min 630 ipm
Z Axis  20 m/min 787 ipm
 Cutting feed rate (X/Z Axis) 0.001~500 mm/rev
Turret
(L/R)		  Tool station
 (Random)		 STD  Hydraulic P12
OPT  Elec V12 or Hydraulic P8
 Size of external turning tool
 (STD;OPT)		 20 x 20 ; 25 x 25 15/19 x 15/19;1 x 1
 Boring bar dia Ø 32 Ø 1 6/23
Motor  Main spindle (continuous) £\ P12 750/6000 rpm
AC 5.5 kw (7.5HP); 7.5kw (10HP)
 Main spindle (30 min, rating) £\ P12 750/6000 rpm
AC 5.5 kw (7.5HP); 7.5kw (10HP)
 Hydraulic oil pump 1.5 kW 2 HP
 Coolant pump 0.375 kW x 2 1/2 HP x 2
Tank
capacity		  Hydraulic tank 55 Litre
 Coolant tank 80 Litre
Measurement  Floor space  (L X W) 4000 x 2300 157 x 90 11/20
 Total height 1900 74 4/5
 Weight (N.W./G.W.) 4500 / 5000 kgs 9921 / 11023 lbs

¡@
