FORCE ONE Technical Precision CNC Lathe : FCL-450TF

FORCE ONE MACHINE

Ą@

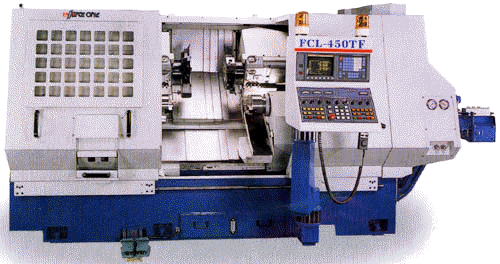

4-Axis ~ 6-Axis CNC LATHE FCL-450TF
Ą@

Ą@
FCL-450TF FUNC TYPE Twin spindle & Twin Turret Specification
Ą@
Standard Accessories High pressure cooling system 100 liter capacity cooling tank Hydraulic turret 12-position, Type: 240A Auto lubrication system Tool & tool box Work lamp, AC 24V 70W M30 program stop light Hydraulic Unit Heat exchanger unit of electric box coolingr Chip conveyor and bucket Hydraulic chuck A2-5 (6") Hydraulic chuck of sub spindle A2-5 (6") Fanuc OTC controll & 9" CRT with standard-keyboard	Optional Accessories: C.E. electric control Auto tool setter measurement Manual tool length measurement Electric turret, Type: 160 Main transformer 30 KVA Auto door & Safety switch Auto parts catcher Prevent crash install of each axes (Safety equlpment) Bar feed interface C Axis with driving tool & turret with disc C Axis contour capability a. Duplomatic BS-TR-160 radil, VDI 30, 12-position power turret with FANUC alpha spindle motor. (Excluding ratating tool holder and tools) b. High resolution magnetic puls coder incorporated into main AC Spindle motor precision contour /index control.

FCL-450TF Specification

MODEL			FCL-450TF
			mm	inch
Capacity	No. of control axis		STD : 4 Axis ; OPT : 6 Axis (C Axis)
	Swing over bed		Ø 450	Ø 17⁵/₇
	Max turning dia		Ø 220	Ø 8²/₃
	Work length		190	7¹²/₂₅
Headsyock & Nain spindle	Spindle nose, internal taper		L & R : ASA A2-5
	Spindle bore		Ø 56	Ø 2⁶/₂₉
	Bar capacity		Ø 45	Ø 117/₂₂
	Hydraulic power chuck		Ø 169	Ø 6¹⁷/₂₆
	Range of spindle speed	X / Z Axis	60~6000 rpm
		C Axis	40~3750rpm
	No. of spindle speed		infinitely variable
Cross slide (X-axis) & Carriage (Z-axis) & Sub spindle (Y-axis)	Longitdinal travel	X1/X2 Axis	170	6⁹/₁₃
	Cross slide travel	Z1/Z2 Axis	220 / 550	8²/₃ / 21^1⁷/₂₆
	Sub spindle travel	Y Axis	550	21¹⁷/₂₆
	AC servo motor	X1/Z1 Axis	1.0 kW	1.4 HP
		X2/Z2 Axis	1.0 kW	1.4 HP
	Rapid traverse speed	X Axis	14 m/min	551 ipm
		Z Axis	16 m/min	630 ipm
		Y Axis	20 m/min	787 ipm
	Cutting feed rate (X/Z Axis)		0.001~500 mm/rev
Turret (L/R)	Tool station (Random)	STD	Hydraulic V12 (160)
		OPT	V12 Servo Bsv-12-160
	Size of external turning tool		20 x 20	¹⁵/₁₉ x ¹⁵/₁₉
	Boring bar dia		Ø 32	Ø 1⁶/₂₃
Motor	Main spindle (continuous)		Ł\P12 750/6000 rpm AC 5.5kw (7.5HP)
	Main spindle (30 min, rating)		Ł\P12 750/6000 rpm AC 7.5kw (10HP)
	Sub spindle (continuous)		Ł\6 1500/8000 rpm AC 5.5kw (7.5HP)
	Sub spindle (30 min, rating)		Ł\6 1500/8000 rpm AC 7.5kw (10HP)
	Hydraulic oil pump		1.5 kW	2 HP
	Coolant pump		0.375 kW x 2	1/2 HP x 2
Tank capacity	Coolant tank		100 Litre
Measurement	Floor space (L X W)		4000 x 2300	157 ¹²/₂₅x90¹¹/₂₀
	Total height		1900	74⁴/₅
	Weight (N.W./G.W.)		5200 / 5700 kgs	11464 / 12566 lbs
