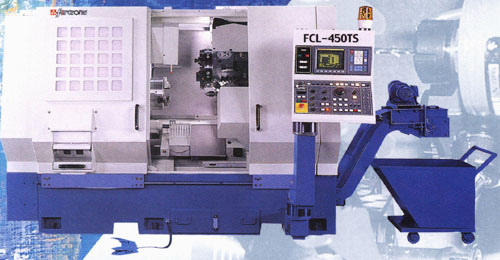

3-Axis ~ 4-Axis CNC LATHE FCL-450TS
Ą@

Ą@
FCL-450TS FUNC TYPE
Ą@

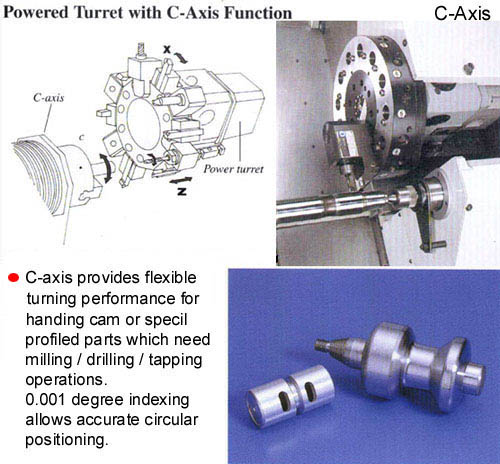

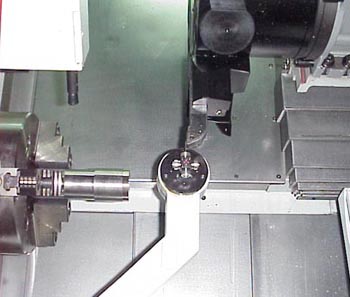

Standard Accessories High pressure cooling system 80 liter capacity cooling tank Hydraulic turret 12-position, Type: 240A Sub. Hydraulic turret 8-position, type: 120 Auto lubrication system Tool & tool box Work lamp, AC 24V 70W M30 program stop light Hydraulic Unit Chip conveyor and bucket Hydraulic chuck A2-6 8" Fanuc OTC controll & 9" CRT with standard-keyboard	Optional Accessories: C.E. electric control Auto tool setter measurement Spindle motor: FANUC AP22 Electric turret, type: 160 Manual tool length measurement Main transformer 22KVA Auto door & Safety switch Auto parts catcher Prevent crash install of each axes (Safety equlpment) Bar feed interface C Axis with driving tool & turret with disc C Axis contour capability a. Duplomatic BS-TR-160 radil, VDI 30, 12-position power turret with FANUC alpha spindle motor. (Excluding ratating tool holder and tools) b. High resolution magnetic puls coder incorporated into main AC Spindle motor precision contour /index control.

FCL-450TS Specification

MODEL			FCL-450TS
			mm	inch
Capacity	No. of control axis		STD : 3 Axis ; OPT : 4 Axis (C-Axis)
	Swing over bed		Ø 450	Ø 17⁵/₇
	Max turning dia		Ø 220	Ø 8²/₃
	Work length		500	19¹³/₁₉
Headsyock & Nain spindle	Spindle nose, internal taper		STD: ASA A2-5 MT 6; OPT: ASA A2-6 & ASA A2-8 Taper: 1/20
	Spindle bore		Ø 56	Ø 2⁶/₂₉
	Bar capacity		Ø 45	Ø 1⁷/₂₂
	Hydraulic power chuck		Ø 169	Ø 6¹⁷/₂₆
	Range of spindle speed		STD:50~4500 rpm; OPT:35~3500 rpm
	No. of spindle speed		infinitely variable
Cross slide (X-axis) & Carriage (Z-axis)	Longitdinal travel	X-axis	170	6⁹/₁₃
	Cross slide travel	Z-axis	560	22¹/₂₂
	AC servo motor	X-axis	1.0 kW	1.4 HP
		Z-axis	1.0 kW	1.4 HP
	Dia. of ball screw	X-axis	Ø 32 (P 10)	Ø 1⁶/₂₃ (P 10)
		Z-axis	Ø 36 (P 10)	Ø 1⁵/₁₂ (P 10)
	Rapid traverse speed	X-axis	16 m/min	690 ipm
		Z-axis	20 m/min	787 ipm
	Cutting feed rate (Both axis)		0.001~500 mm/rev	0.00001~19¹³/₁₉"/rev
Turret (L/R)	Tool station (Random)		Elec. V12
	Size of external turning tool		20 x 20	¹⁵/₁₉ x ¹⁵/₁₉
	Boring bar dia		Ø 25	Ø 1
Motor	Main spindle (continuous)		Ł\P12 750/6000 rpm
	Main spindle (30 min, rating)
	Hydraulic oil pump		2.2 kW	3 HP
	Coolant pump		0.4 kW	1/2 HP
R-Turret	Turning tool bar		Ø 32	Ø 1¹⁶/₂₃
	R-Turret travel		430	16¹³/₁₄
Tank capacity	Hydraulic tank		55 Litre
	Coolant tank		80 Litre
Measurement	Packing (L X W)		3500 x 2300	138 x 90²/₃
	Total height		1900	74⁴/₅
	Weight (N.W./G.W.)		4000 / 4500 kgs	8819 / 9921 lbs
