FORCE ONE Technical Precision CNC Lathe : FCL-580

FORCE ONE MACHINE

Ą@

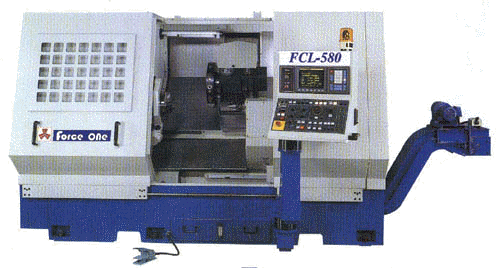

2-Axis ~ 3-Axis CNC LATHE FCL-580

Ą@
Power Turret Specification
Ą@
Standard Accessories High pressure cooling system 100 liter capacity cooling tank Hydraulic turret 12-position, Type: 240A Auto lubrication system Tool & tool box Work lamp, AC 24V 70W M30 program stop light Hydraulic Unit Heat exchanger unit of electric box coolingr Chip conveyor and bucket Hydraulic chuck 10" & Hydraulic cylinder Hydraulic tailstock Fanuc OTC controll & 9" CRT with standard-keyboard	Optional Accessories: C.E. electric control Auto tool setter measurement Manual tool length measurement Main transformer 22KVA Auto door & Safety switch Auto parts catcher Prevent crash install of each axes (Safety equlpment) Bar feed interface C Axis with driving tool & turret with disc C Axis contour capability a. Duplomatic BS-TR-160 radil, VDI 30, 12-position power turret with FANUC alpha spindle motor. (Excluding ratating tool holder and tools) b. High resolution magnetic puls coder incorporated into main AC Spindle motor precision contour /index control.

FCL-580 Specification

MODEL			FCL-580
			mm	inch
Capacity	No. of control axis		STD : 2 Axis ; OPT : 3 Axis (C Axis)
	Swing over bed		Ø 580	Ø 22⁵/₆
	Max turning dia		Ø 370	Ø 14⁴/₇
	Work length		650	25¹³/₂₂
Headsyock & Nain spindle	Spindle nose, internal taper		ASA A2-8 96 Ø 96 mm Taper 1/20
	Spindle bore		Ø 90	Ø 3⁶/₁₁
	Bar capacity		Ø 75	Ø 2²⁰/₂₁
	Hydraulic power chuck		Ø 254 or 304	Ø 10 or 12
	Range of spindle speed	X / Z Axis	35~3500 rpm
		C Axis	25~2500 rpm
	No. of spindle speed		infinitely variable
Cross slide (X-axis) & Carriage (Z-axis) & Sub spindle	Longitdinal travel	Z Axis	850	33¹/₂
	Cross slide travel	X Axis	285	11²/₉
	AC servo motor	X Axis	2.1 kW	2.8 HP
		Z Axis	2.1 kW	2.8 HP
	Dia of ball screw	X Axis	Ø 32 P10	Ø 1⁶/₂₃ P10
		Z Axis	Ø 36 P10	Ø 1⁵/₁₂ P10
	Rapid traverse speed	X Axis	16 m/min	630 ipm
		Z Axis	20 m/min	787 ipm
	Cutting feed rate (X/Z Axis)		0.001~500 mm/rev
Turret (L/R)	Tool station (Random)	STD	Hydraulic P12
		OPT	Elec V12
	Size of external turning tool		25 x 25	1 x 1
	Boring bar dia		Ø 40	Ø 1¹⁵/₂₆
Motor	Main spindle (continuous)		Ł\ P12 750/6000 rpm AC 5.5 kw (7.5HP); 7.5kw (10HP)
	Main spindle (30 min, rating)		Ł\ P22 750/6000 rpm AC 11 kw (15 HP); 15 kw (20HP)
	Hydraulic oil pump		1.5 kW	2 HP
	Coolant pump		0.375 kW x 2	1/2 HP x 2
Tank capacity	Hydraulic tank		55 Litre
	Coolant tank		80 Litre
Measurement	Floor space (L X W)		4000 x 2400	157 x 94¹/₂
	Total height		2200	87²/₅
	Weight (N.W./G.W.)		5000 / 5500 kgs	11023 / 12125 lbs
