FORCE ONE Technical Precision CNC Lathe : FCL-580TMS

FORCE ONE MACHINE

Ą@

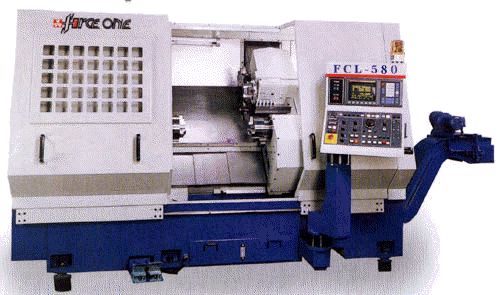

3-Axis ~ 4-Axis CNC LATHE FCL-580TMS
Ą@

Ą@
FCL-580TMS FUNC TYPE Specification
Ą@
Standard Accessories High pressure cooling system 100 liter capacity cooling tank Hydraulic turret 12-position, Type: 240A Auto lubrication system Tool & tool box Work lamp, AC 24V 70W M30 program stop light Hydraulic Unit Heat exchanger unit of electric box coolingr Chip conveyor and bucket Hydraulic chuck 10" & Hydraulic cylinder Fanuc OTC controll & 9" CRT with standard-keyboard	Optional Accessories: C.E. electric control Auto tool setter measurement Manual tool length measurement Electric turret, Type: 160 Auto door & Safety switch Auto parts catcher Prevent crash install of each axes (Safety equlpment) Bar feed interface C Axis with driving tool & turret with disc C Axis contour capability a. Duplomatic BS-TR-160 radil, VDI 30, 12-position power turret with FANUC alpha spindle motor. (Excluding ratating tool holder and tools) b. High resolution magnetic puls coder incorporated into main AC Spindle motor precision contour /index control.

FCL-580TMS Specification

MODEL			FCL-580TMS
			mm	inch
Capacity	No. of control axis		STD : 3 Axis ; OPT : 4 Axis (C Axis)
	Swing over bed		Ø 580	Ø 25⁵/₆
	Max turning dia		Ø 380	Ø 15
	Work length		450	17⁵/₇
Headsyock & Nain spindle	Spindle nose, internal taper		L: ASA A2-8 ; R : ASA A2-6
	Spindle bore		Ø L:90 ; R: 61	Ø L: 3⁶/₁₁ ; R: 2⁶/₂₅
	Bar capacity		Ø L:75 ; R: 51	Ø L: 2²⁰/₂₁ ; R: 2
	Hydraulic power chuck		Ø L:254 ; R: 210	Ø L:10 ; R :8²¹/₂₆
	Range of spindle speed	X / Z Axis	L: 50~3500 rpm ; R: 50~4200 rpm
		C Axis	25~2500rpm
	No. of spindle speed		infinitely variable
Cross slide (X-axis) & Carriage (Z-axis) & Sub spindle (Y-axis)	Longitdinal travel	X Axis	265	10³/₇
	Cross slide travel	Z Axis	600	23¹⁸/₂₉
	Sub spindle travel	Y Axis	460	18¹/₉
	AC servo motor	X1/Z1 Axis	2.1 kW	2.8 HP
		X2/Z2 Axis	2.1 kW	2.8 HP
		YAxis	2.1 kW	2.8 HP
	Rapid traverse speed	X Axis	16 m/min	630 ipm
		Z Axis	16 m/min	630 ipm
		Y Axis	20 m/min	787 ipm
	Cutting feed rate (X/Z Axis)		0.001~500 mm/rev
Turret (L/R)	Tool station (Random)	STD	Hydraulic V12 (240A)
		OPT	V12 Servo Bsv-12-200
	Size of external turning tool		25 x 25	1 x 1
	Boring bar dia		Ø 40	Ø 1¹⁵/₂₆
Motor	Main spindle (continuous)		Ł\P22 750/6000 rpm AC 11 kw (15HP)
	Main spindle (30 min, rating)		Ł\P22 750/6000 rpm AC 15 kw (20HP)
	Sub spindle (continuous)		Ł\8 1500/6000 rpm AC 7.5kw (10HP)
	Sub spindle (30 min, rating)		Ł\8 1500/6000 rpm AC 11kw (15HP)
	Hydraulic oil pump		1.5 kW	2 HP
	Coolant pump		0.375 kW x 2	1/2 HP x 2
Tank capacity	Coolant tank		100 Litre
Measurement	Floor space (L X W)		4000 x 2400	157 ¹²/₂₅x94¹/₂
	Total height		2220	87²/₅
	Weight (N.W./G.W.)		5220 / 5720 kgs	11508 / 12610 lbs
