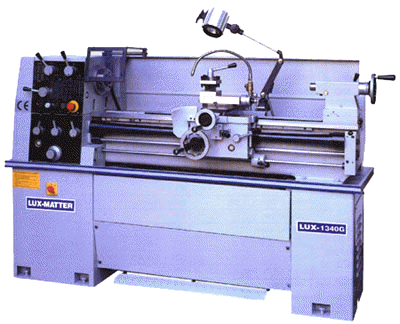

lux-matter engine lathe lux1340g

PRECISION ENGINE LATHE

LUX-1340G


LUX-1340G

ASA D1-4 Camlock 40 mm spindle bore.

Hardened and grounded gear headstock.

Headstock gears are made of scm21. (CR-MO Alloy steel) Respectivelly.

3HP 3PH Main motor.

LUX-1340G SPECIFICATION .................................. unit : mm ( inch )

ITEMS / MODEL		LUX-1340G
Capacities	Swing over bed	330 (13")	Standard equipment: Main motor 3HP 3PH Casting iron stand Rapid brake Backplate (D1-4) MT # 3 center Reducing sleeve Threading dial Tool Kit & Box 4 Way tool post Complete electrical equipment Instruction manual and parts list Gap bed Coolant pump system Optional equipment: Rear tool post 3-Jaw chuck 6", 7" 8" 4-Jaw chuck 8" Face plate 10" OR 12" (D1-4) Steady rest Follow rest Full length splash guard Quick change tool post American tool post Taper attachment M.T. # 3 Rolling center Bed micro stop set
	Swing over cross slide	203 (8")
	Distance between centers	1000 (40")
	Swing over gap	508 (20")
	Width of bed	203 (8")
Headstock	Spindle nose	ASA D1-4
	Spindle bore	40 (1.6")
	Taper of spindle	M.T. # 5
	Spindle speeds (8 Steps)	85,135,225,365, 465, 750,1230,2000
Threads and feeds	Inch threads	4-112 T.P.I. (40 Kinds)
	Metric threads	0.25-6 (22 Kinds)
	Longitudinal feeds range	0.05-1.0 (0.002"-0.04")
	Cross feeds range	0.025-0.5 (0.001"-0.02")
	Leadscrew diameter	25 (1")
	Leadscrew pitch	6 Pitch (4 T.P.I.)
Carriage	Cross slide travel	205 (8.1)
	Compound slide travel	95 (3.74)
	Toolblock capacity	20 x 20 (0.8 x 0.8)
Tailstock	Center	M.T. # 3
	Spindle travel	110 (4.3)
	Spindle dia.	38 (1.5)
Power	Main motor	3 HP 3ph
Power	Coolant pump	1/8 HP
Machine dimension	Floor size (LxW)	1860 x 700 (74" x 28")
	Packing size (LxWxH)	1930 x735x1520(76x29x60)
	Net weight	770 kgs (1698 ibs)
	Gross weight	980 kgs (2161 ibs)
