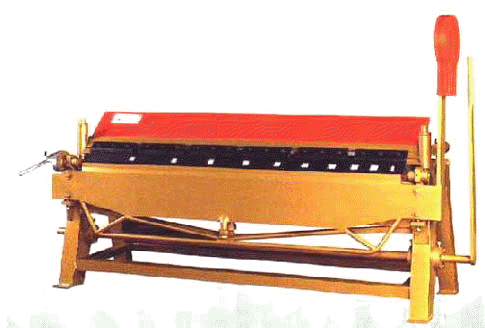

| MANUAL FOLDING MACHINE |
|
To --
Fording Capacity

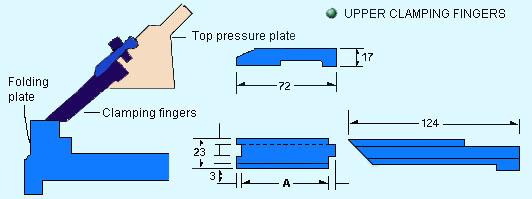

Upper Clamping Fingers
Specifiation
YCB Series - $ Prices
|
|
This multi-function machine is designed for angle bending, box and pan folding and folding of narrow edges. The machine has been designed by us with our 20 years of experience and each part is designed without any imitation of design or style of competitors either domestic or overseas. We reserve the right to alter design or specification at any time without notice and apart from the outward appearance the performance of the machine will generally be improved every year. |
| FOLDING CAPACITY
|
A : Mild steel / B : Stainless steel | Unit : PIECE / mm | |||||
| T | col1 mm | 1.2 mm | 1.6 mm | 1.8 mm | 2 mm | ||
| L | 5 mm | 6 mm | 8 mm | 9 mm | 10 mm | ||
| YCB-1230 | A | 1230 | 1230 | 1000 | 800 | 600 | |
| B | 1000 | 800 | 700 | 600 | 400 | ||
| YCB-1830 | A | 1830 | 1500 | 1200 | 1000 | 800 | |
| B | 1600 | 1200 | 1000 | 800 | 600 | ||
| YCB-2030 | A | 2030 | 1600 | 1400 | 1200 | 1000 | |
| B | 1800 | 1400 | 1200 | 1000 | 800 | ||
| YCB-2440 | A | 2440 | 2200 | 2200 | 1800 | 1600 | |
| B | 2200 | 2000 | 1800 | 1600 | 1400 | ||
| YCB-3030 | A | 3030 | 2800 | 2600 | 2400 | 2200 | |
| B | 2800 | 2600 | 2400 | 2200 | 2000 | ||
 |
| Specification .............. unit : mm ( inch ) |
| ITEM / MODEL | YCB-1230 | YCB-1830 | YCB-2030 | YCB-2440 | YCB-3030 | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | ||
| Folding length | 1230 | 48 | 1830 | 72 | 2030 | 80 | 2440 | 96 | 3030 | 119 | |
| Folding capacity | 2 (1/12) | ||||||||||
| Weigh (kg / lb) | 550 (1213) | 900 (1984) | 1000 (2205) | 1250 (2756) | 1600 (3528) | ||||||
| Minimum folding | 45 deg. | ||||||||||
| Folding angle | Any Angle | ||||||||||
| Packing size | L | 2080 | 82 | 2700 | 106 | 2850 | 112 | 3300 | 130 | 3900 | 154 |
| W | 850 (34) | ||||||||||
| H | 1250 (49) | 1300 | 51 | ||||||||
 |
 |
 |
¡@
