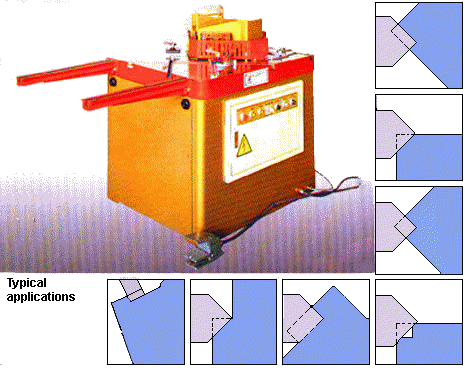

| HYDRAULIC NOTCHING MACHINE |
 |
YCE-SERIES
TYPE YC-220S YC-250S |
To --
Detail Features
Specifiation
YCE Series - $ Prices
¡@ |
 |
|
| SPECIFICATION ............. unit : mm (inch) |
| MODEL | YC-220S | YC-250S | |||||
| mm | inch | mm | inch | ||||
| Mild Steel | Cutting Capacity | 4.0 | 3/19 | 6.0 | 4/17 | ||
| Size | Max. Cutting Angle | 220x220 | 82/3x82/3 | 250x250 | 916/19x916/19 | ||
| Stroke | 50 | 2 | 60 | 2 4/11 | |||
| Motor | Volt | 220 Vx3 HPx4 P | 220 Vx 3 HPx 6P | ||||
| HZ | 60 HZ | 60 HZ | |||||
| Oil Hydraulic | Cylider | Ton | 15 | 20 | |||
| s.ton | 16.54 | 22.05 | |||||
| Max. Pressure | 140 kg/cm2 | 140 kg/cm2 | |||||
| Pump | 25 l/Min (50HZ) | 25 l/Min (50HZ) | |||||
| 30 l/Min (60HZ) | 30 l/Min (60HZ) | ||||||
| Tank | 40 l | 40 l | |||||
| Gross Weight | kg | 950 | 1100 | ||||
| ib | 2094 | 2425 | |||||
| Packing Size (LxWxH) | mm | 1100x950x1250 | 1200x1100x1350 | ||||
| inch | 43x37x49 | 47x39x53 | |||||
 |
 |
 |
¡@
