HYDRAULIC FOLDING MACHINE

MAIN USES # Air conditioning ducting # Refrigerator body # Truck body # Modular furniture panels TYPE YCL-1230,YCL-1830, YCL-2030,YCL-2440, YCL-3030,YCL-4000 To: Specifiation      YCL Series - $ Prices

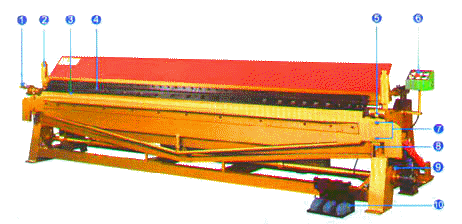

YCL-SERIES Angle adjustment from 60 to 180 degrees. Simple insertion space adjustment with 4 position lever. Insertion space five times more then competitors. Convex blade bolts spread the stress evenly over blade and blade easily      assembled according to job in hand. Special notch provided to assist box      forming. Central lubrication. Control box easy to see. Plate turning screws. Central anti-deflection adjustment of folding plate. Motor lubricating device. Oil pressure pedal switch.

Specifications ........... unit : mm (inch)

Model		YCL-1230		YCL-1830		YCL-2030		YCL-2440		YCL-3030		YCL-4000
		mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
Folding Length		1230	48	1830	72	2030	80	2440	96	3030	119	4000	158
Folding Capacity		2.0 (2/25)
Minimum Folding		60 deg.
Folding Angle		Any Angle
Weight		650	26	1000	39	1200	47	1500	59	2500	98	3800	150
Main Motor		2 HP						3 HP
Packing Size	L	2050	81	2700	106	2850	112	3300	130	3900	154	4800	189
	W	850(331/2)
	H	1250	49	1250	49	1250	49	1300	51	1350	53	1500	59
