CNC HYDRAULIC PRESS BRAKE 80~300


stripe1.gif YCN/CNC 80-300 SPECIFICATION unit : mm click.gif
         YCN/CNC 80-300 SPECIFICATION unit : inch click.gif
         YCN/CNC ALL MODEL click.gif

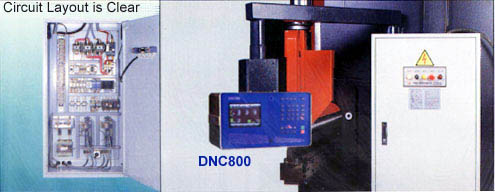

         YCN/CNC ELECTRIC CABINET click.gif

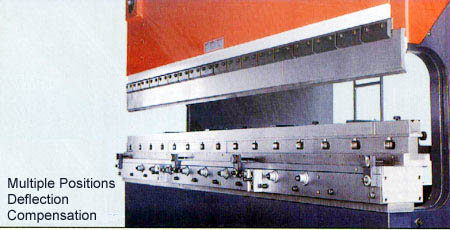

         YCN/CNC MULTIPLE POSITIONS DEFLECTION COMPENSATION click.gif

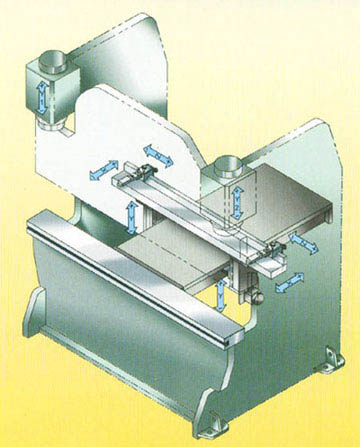

         YCN/CNC BACK GUAGE click.gif

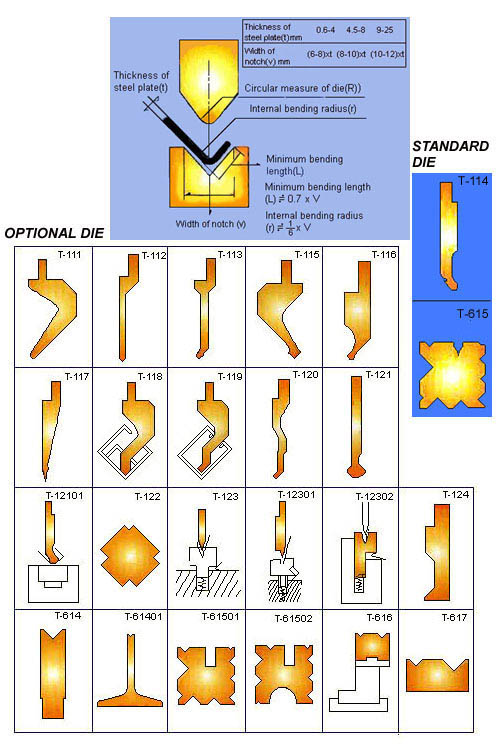

         YCN/CNC STANDARD & OPTIONAL DIE click.gif
         YCNCNC Series 80~300 - $ Prices click.gif
cnclogo.jpg  TYPE : YCN-8026 ; YCN-8032 ; YCN-10026 ; YCN-10032
YCN-10040 ; YCN-15026 ; YCN-15032 ; YCN-15040 ; YCN-15050 ; YCN-20026
YCN-20032 ; YCN-20040 ; YCN-20050 ; YCN-20060 ; YCN-30026 ; YCN-30032
YCN-30040 ; YCN-30050 ; YCN-30060 ; YCN-40032 ; YCN-40040 ; YCN-40050
YCN-40060 ; YCN-45032 ; YCN-45040 ; YCN-45050 ; YCN-45060 ; YCN-50040
YCN-50050 ; YCN-50060 ; YCN-60042 ; YCN-60052 ; YCN-60062 ; YCN-70052
YCN-70062 ; YCN-80052 ; YCN-80062 ; YCN-60062 ; YCN-100062

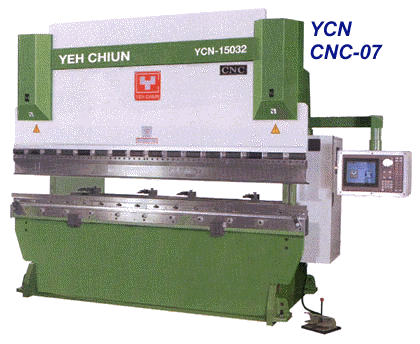

YCN CNC-SERIES
MAIN FEATURE:
  1. Graphical display of parts profile.
  2. Automatic calculation of parts blank length.
  3. Graphical Smulation of parts forming sequence.
  4. Graphical display before and after each operation.
  5. Automatic calculation and adjustment of press force.
  6. Programmable retract at pinch point.
  7. Backgauge start delay function.
  8. Programable ram travel speed.
  9. Programable ram dwell time.
  10. Auto setting of open height and speed change point for each bend.
  11. Store 999 jobs, 14 bends for each job, 28 bends can be linked in one operation.
  12. Various angle and curve can be formed by single pair of tools.
  13. Graphic display of punch and die, store 50 sets of tools.
  14. Can be connected to PC for  CAD/CAM networks.

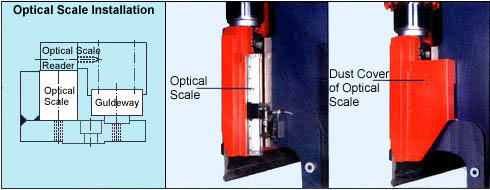

  15. Ram with two linear scales in each side, positioning accuracy up to 0.01mm.
  16. Precise ground sectional punch and die with tool length and angle marked at front side with whole length die holder.
  17. Manually adjusted anti-deflection device with reference chart..
  18. CNC backgauge travel speeed 200mm/sec, stroke 600mm with micro adjusted backgauge fingers.
  19. Programmable it-axis. (backgauge height)

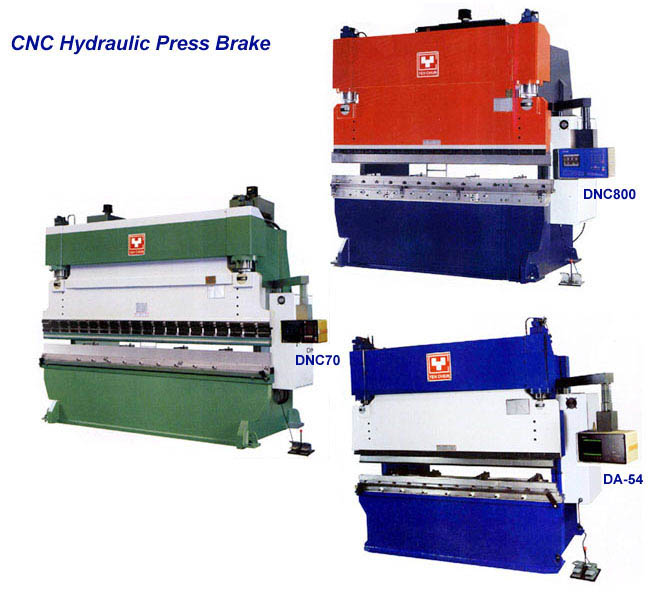

greenball.gif CNC Control Panel --- Multiple Languages Screen
ycncnca.gif CYBELEC
  * DNC70
  * DNC800
  * DNC900
 ycncncb.jpg DELEM
  * DA-54
  * DA-59
  * DA-24e
  * DA-58e

For further information, please contact:
combitechb.gif Taiwan Combined Technologies Co., Ltd. Taichung , Taiwan
contact: info@Combitech.com.tw   click.gif
