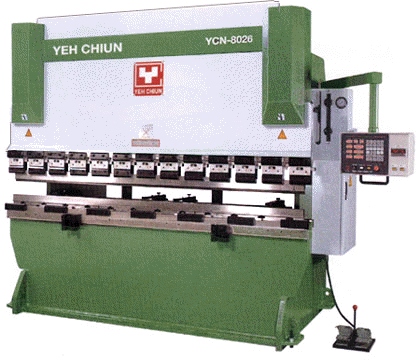

NC HYDRAULIC PRESS BRAKE 45~300

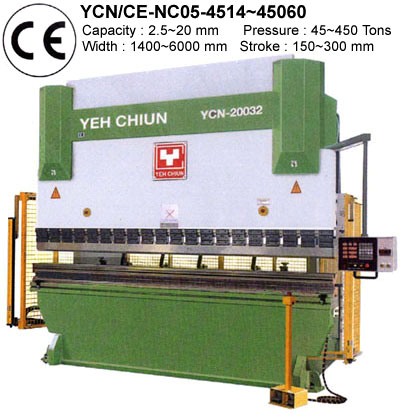

YCN CE-NC-05 YCN NC-05 45~300 SPECIFICATIONS unit : mm               YCN NC-05 45-300 SPECIFICATIONS unit : inch YCN NC-05 Series 80~300 - $ Prices       YCN NC-05 Series 400~1000 - $ Prices

TYPE : YCN-4514 ; YCN-4516 ; YCN-4520 ; YCN-6020 YCN-6026 ; YCN-6032 ; YCN-8026 ; YCN-8032 ; YCN-10026 ; YCN-10032 YCN-10040 ; YCN-15026 ; YCN-15032 ; YCN-15040 ; YCN-15050 ; YCN-20026 YCN-20032 ; YCN-20040 ; YCN-20050 ; YCN-20060 ; YCN-30026 ; YCN-30032 YCN-30040 ; YCN-30050 ; YCN-30060 ; YCN-40032 ; YCN-40040 ; YCN-40050 YCN-40060 ; YCN-45032 ; YCN-45040 ; YCN-45050 ; YCN-45060 ; YCN-50040 YCN-50050 ; YCN-50060 ; YCN-60042 ; YCN-60052 ; YCN-60062 ; YCN-70052 YCN-70062 ; YCN-80052 ; YCN-80062 ; YCN-90062 ; YCN-100062

YCN NC-05 Series NC FUNCTIONS: Adopt AC Servo motor free of carbon brush; free of  maintenance. Speed of back guage: 1000 rpm. Min. preset unit : 0.01 m/m Tolerance of Back Guage : 0.01m/m (G point of Servo motor is taken as the basis point). The max. number of drawing No. to be memorized is 156. Each drawing No. offers 16 operations. The range of preset workpieces is 99999; machine automatically stops when the whole processing completes. Control Function: Preset of modification of size, manual /semiautomatic /fully automatic /limit detection operation. Manual input is simple and can be stored.

¡@
