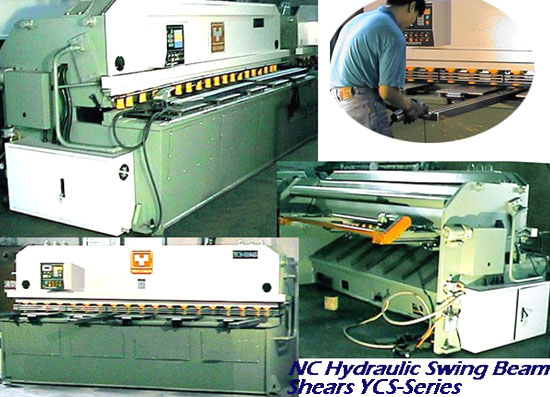

NC HYDRAULIC SWING BEAM SHEAR

TYPE : YCS-20045 ; YCS-25045 ; YCS-31045 ; YCS-41045 ; YCS-20065 ; YCS-25065 YCS-31065 ; YCS-41065 ; YCS-250100 ; YCS-310100 ; YCS-410100 ; YCS-250130 YCS-310130 ; YCS-410130 ; YCS-510130 ; YCS-610130 ; YCS-150160 ; YCS-200160 YCS-250160 ; YCS-310160 ; YCS-410160 ; YCS-610160 ; YCS-150200 ; YCS-250200 YCS-310200 ; YCS-410200 ; YCS-150250 ; YCS-250250 ; YCS-310250 ; YCS-410250 To -- Main Featerus       Dimension   YCS-SERIES SPECIFICATIONS unit : mm     YCS-ALL MODEL           YCS-SERIES SPECIFICATIONS unit : inch     YCS-DETAIL FEATURES           YCS Series 150~310 - $ Prices     YCS Series 410~610 - $ Prices

YCS-SERIES MAIN FEATURE Swing beam ram design offers precision shearing and quick and easy operation with it can cut both thick and thin (0.1 mm) steel plate. Special hydraulic control system automatically adjusts the pressure according to the thickness of plate being cut (from 0.1 to 25mm) All steel welded structure - fully stress relieved. All controls grouped at front for easy operation. Overload device to protect machine and blades. With swing beam action the top blade is always exactly parallel with lower blade at point where shearing takes place along the blade length. This results in excellent cut quality. Swing beam pivot points allow simple adjustment and display of blade clearance to ensure accuracy and to protect machine.

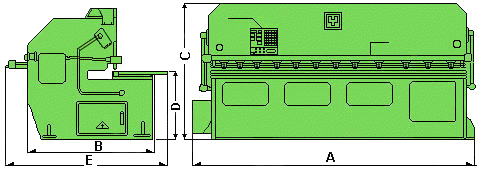

Dimensions unit : mm

Model	A	B	C	D	E	*	Model	A	B	C	D	E
YCS-20045	2500	1350	1400	800	2680		YCS-310160	3850	2200	2300	1050	2950
YCS-25045	3000	1350	1400	800	2680		YCS-410160	4850	2200	2350	1050	2950
YCS-31045	3550	1350	1400	800	2680		YCS-150160	2200	2200	2200	1050	2800
YCS-41045	4560	1580	1600	800	2750		YCS-200160	2600	2000	2200	1050	2800
YCS-20065	2500	1620	1600	800	2690		YCS-250160	3300	2200	2300	1050	2950
YCS-25065	3060	1620	1700	900	2690		YCS-610130	7000	2300	2800	1200	3100
YCS-31065	3610	1620	1700	900	2690		YCS-610100	7000	2200	2600	1150	2800
YCS-41065	4650	1670	1950	900	2690		YCS-150200	2300	2000	2300	1150	2800
YCS-250100	3060	1670	1880	900	2710		YCS-250200	3200	2000	2300	1150	2800
YCS-310100	3610	1670	1880	900	2710		YCS-310200	3800	2000	2400	1200	2800
YCS-410100	4720	1900	1970	900	2760		YCS-410200	4800	2000	2400	1200	2800
YCS-250130	3110	1900	1970	900	2780		YCS-150250	2350	2200	2300	1200	3000
YCS-310130	3660	1900	1970	900	2780		YCS-250250	3300	2200	2300	1200	3000
YCS-410130	4830	2200	2300	1050	2950		YCS-310250	4000	2200	2400	1200	3000
YCS-510130	5900	2200	2600	1150	2950		YCS-410250	5000	2200	2400	1200	3000

¡@

                                                                                 For further information, please contact:

¡@

¡@
