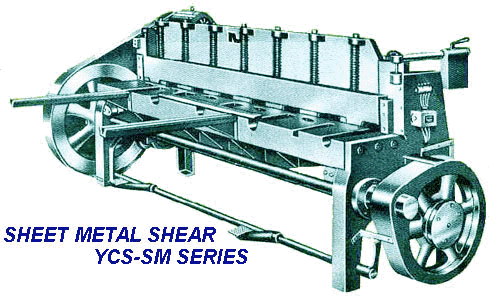

SHEET METAL SHEAR
  • Some dimensions on the catalog maintain the Hexibility for modification
     The working capacity is based on the working plate with tensile stength 40 kg/mm2, or based on SS41 iron plate. For high tensile strength material, such as stainless stell, the above-listed values shall be multipied by 60% ~ 70%.
  • Standard Parts :
     1. Bladws one set (2 pieces)
    2. Three phases electric motor (1 set)
    3. (Frontdeckle) 1 piece
    4. Front support arm (2 pieces)
    5. Gear ranging rear deckle (1 set)
    6. Hand control oil pressure lubricalor
  • The Main use :
     Various metal plate, as iron plate, Steel plate, Copper plate, Aluminum  plate, Galvanized plate, Stainless plate, Zinc plate and else none metal plates as electrical circuit board, baggage board, hard plastic board, and gum board etc.

    To -- greenball.gif Specifiation     greenball.gif YCS_SM Series - $ Prices


Speifications : (STD type) unit : mm (inch)
Model Length of shearing Cutting Thickness of Plate Rate Angle SPM HPxP kg (Size) CUFT
L W H h
YCS-SM232 610 (24) 3.2 (1/8) 2¢X30' 60 2HPx4P 980 1800 1100 1200 800 122.5
YCS-SM245 4.5 (3/16) 55 2HPx4P 1100
YCS-SM432 1220 (48) 3.2 ( 1/8) 2¢X00' 55 3HPx4P 1750 2450 1200 1300 820 212.55
YCS-SM445 4.5 (3/16) 50 3HPx4P 1850
YCS-SM532 1530 (60) 3.2 (1/8) 1¢X50' 55 3HPx4P 2100 2750 1200 1200 820 248.5
YCS-SM545 4.5 (3/16) 50 5HPx4P 2300
YCS-SM632 1830 (72) 3.2 (1/8) 1¢X50' 50 5HPx4P 2600 3175 1580 1540 875 296
YCS-SM645 4.5 (3/16) 45 5HPx4P 2800
YCS-SM832 2440 (96) 3.2 (1/8) 1¢X50' 40 71/2HPx4P 3900 3925 1580 1540 875 490
YCS-SM845 4.5 (3/16) 35 10HPx4P 4300
YCS-SM1032 3050 (120) 3.2 (1/8) 1¢X40' 40 10HPx4P 4900 4535 1660 1580 880 630
YCS-SM1045 4.5 (3/16) 35 15HPx4P 5400
YCS-SM1232 3660 (144) 3.2 (1/8) 1¢X25' 35 15HPx4P 7200 4910 1660 1580 800 748.5
YCS-SM1245 4.5 (3/16) 30 30HPx4P 8200

¡@
