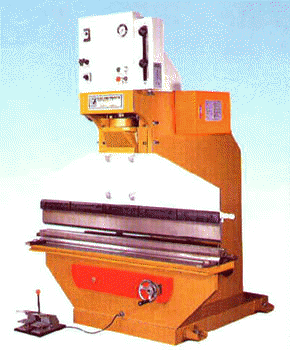

UNIVERSAL HYDRAULIC PRESS BRAKE

	TYPE   YCU-350   YCU-400   YCU-450   YCU-650   To --   Main Featerus   Specifiation   YCU-Optional DIE   YCU Series - $ Prices
¡@
YCU-SERIES MAIN FEATURE Super accurate adjustment of stroke. Full length tooling, semi-gooseneck and multi Vee. Wandering footswitch. Return stroke limit. Table arms and tool adjustors. Optional: Backgauges, manual, power or NC.

YCU-SERIES SPECIFICATION

TYPE			YCU-350	YCU-400	YCU-450	YCU-650
Folding Capacity	mm		3.2x1260	3.2x1560	3.2x1830	3.2x2000
	inch		1/8x50	1/8x 61 2/5	1/8x72	1/8x78 4/5
Max. Capacity	ton		35	40	45	65
	s.ton		38.58	44.1	49.6	71.65
Motor			3 HP	3 HP	5 HP	5 HP
Table Length	mm		1260	1560	1830	2000
	inch		50	61	72	79
Table Width	mm		300	300	300	300
	inch		11 4/5	11 4/5	11 4/5	11 4/5
Distance between housings	mm		470	470	580	580
	inch		18 1/2	18 1/2	22 4/5	22 4/5
Daylight	mm		320 ()	320	350 ()	350
	inch		12 3/5	12 3/5	13 4/5	13 4/5
Stroke	mm		120	120	150	150
	inch		4 5/7	4 5/7	5 9/10	5 9/10
Throat	mm		600	600	600	600
	inch		23 3/5	23 3/5	23 3/5	23 3/5
Net Weight	kg		2400	2600	3000	3400
	Ib		5291	5732	6614	7496
Gross Weight	kg		2800	3000	3400	3800
	Ib		6173	6614	7496	8378
Pocking Size	L	mm	1500	1800	2100	2300
		inch	59	71	83	91
	W	mm	1400	1400	1450	1450
		inch	55	55	57	57
	H	mm	2300	2300	2500	2500
		inch	91	91	98	98

¡@
